Service menu

Calling the service menu

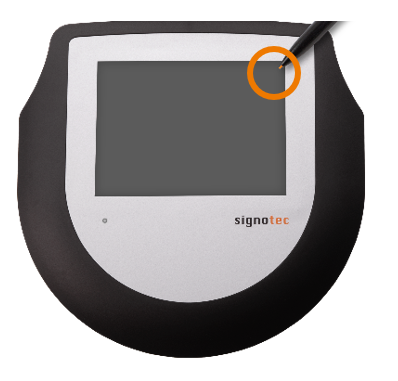

Disconnect the pad from the power supply to access the service menu of the unit. Touch the upper right corner of the display with the pen. While holding the pen, reconnect the pad to the power supply. After rebooting, the LED lights up orange and the service menu is launched. You can navigate the menu using the supplied pen.

Tip: As an alternative, you can also access the service menu with API methods or the signoSign/2 application software.

Adjusting the brightness

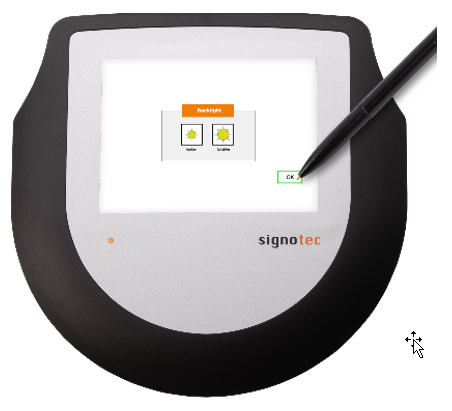

The brightness of the display is adjusted via the service menu. Tap the desired setting with the pen (either ‘darker’ or ‘lighter’). After you have adjusted the brightness you can accept the settings by tapping the checkmark. The pad will then reboot.
