Product view

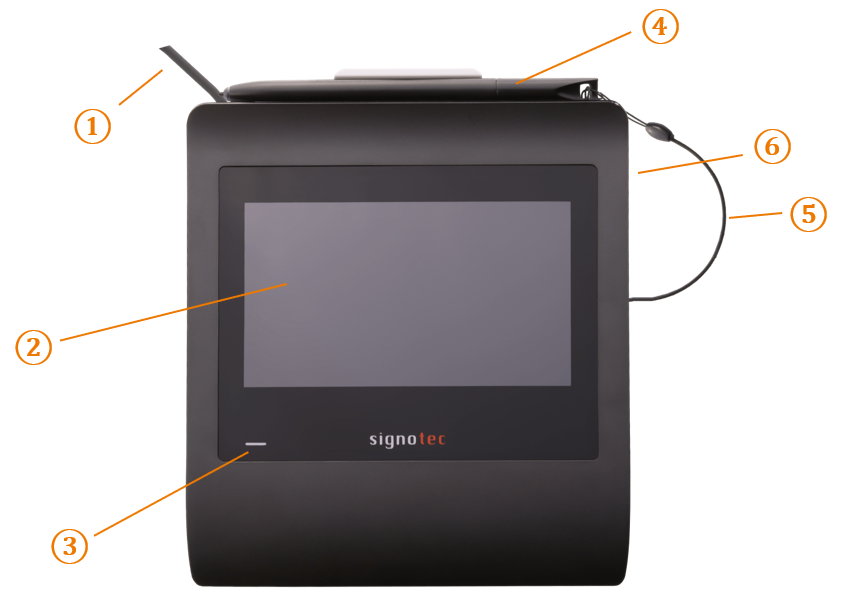

Front
Description | |
|---|---|
| 1 | USB cable |
| 2 | Liquid Crystal Display (LCD) with |
| 3 | Status LED |
| 4 | Ergonomic pen with |
| 5 | Cord (attached to the device and pen) |
| 6 | Kensington NanoSaver lock (Rev. G and later) |

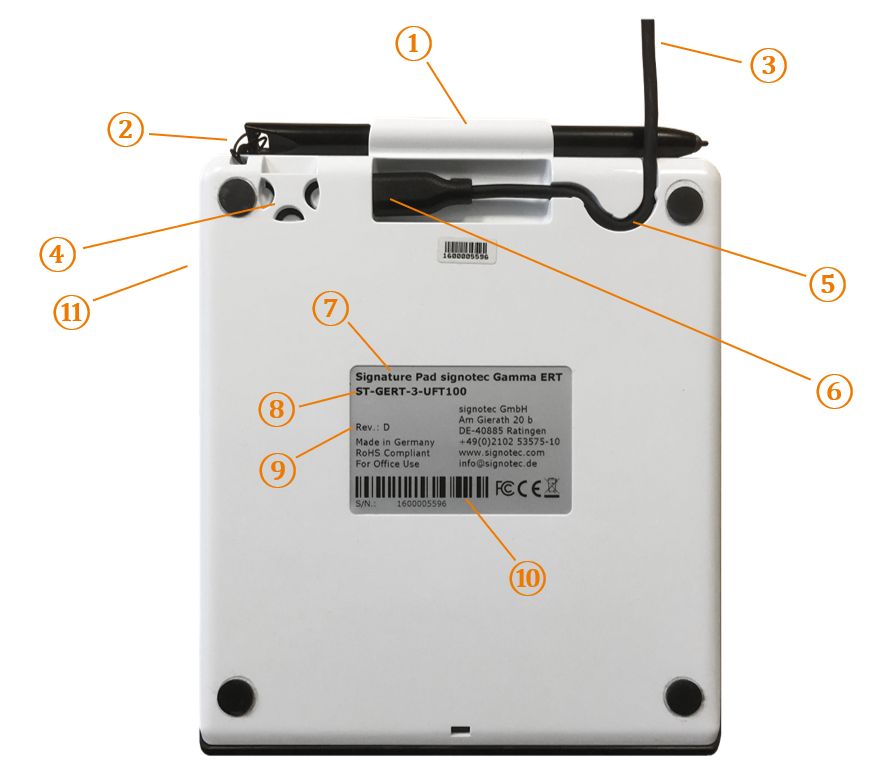

Back
Description | |
|---|---|
| 1 | Pen holder (horizontal) |
| 2 | Cord (attached to the device and pen) |
| 3 | USB cable |
| 4 | Mounting fixture for a vertical |
| 5 | Tension relief for USB cable |
| 6 | Micro-USB port |
| 7 | Device designation |
| 8 | Item number |
| 9 | Hardware revision number |
| 10 | Barcode with unique serial number |
| 11 | Kensington NanoSaver lock (Rev. G and later) |
