Configuration

Display settings

After you have installed the drivers and properly connected the device, the
operating system detects the signature pad as an additional monitor. You can duplicate or extend the main display using the
system settings for the monitor. In addition, you can also configure
the position of the monitor, just like you would for a multi-monitor setup.

Configuring the pen input

Start the signotec Pen Display Manager via the Start menu or tray icon if you want to configure the pen input. A small window appears with two tabs: ”Pen” and “Mapping.”

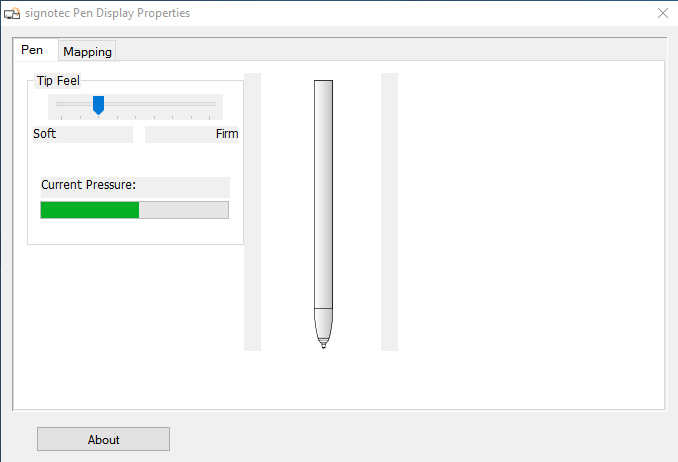

You can change the pressure sensitivity under “Pen.” Move the slider for “Tip Feel” to the desired position. “Soft” means that the pen will transmit a high pressure if touched lightly; whereas “Firm” means that the user will need to press harder with the pen.

Drag the window to the Pen Display and press a point in the window using the pen in order to test the current setting. The “Current Pressure” display visualizes the currently measured pressure.
To link the pen input to the correct monitor, select the desired monitor in the “Mapping” tab.

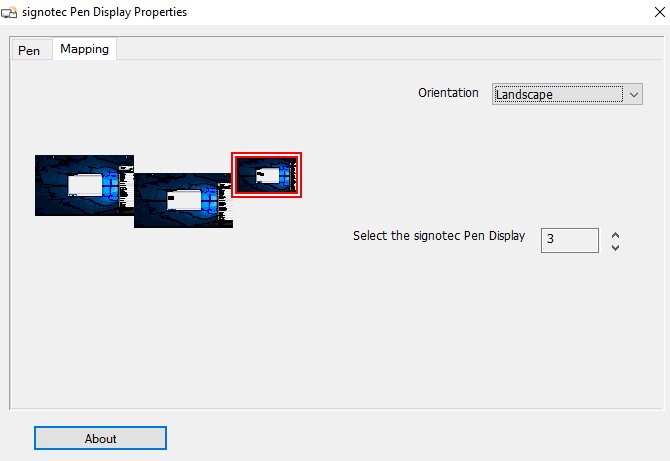

All detected monitors are listed on the left side. You can use the option “Select the signotec Pen Display” on the right to determine which of the connected monitors is the Pen Display. The current selection has a red border.

The selection will cause the pen inputs to be made and visualized on the desired monitor.
